Operating Limits:

Max. liquid temperature: 35℃

Min. well diameter: Φ 100mm

Max. immersion depth: 30m

Max. sand content: 0.15%

Continuous duty

Motor:

Two-Pole induction motor(n=2900r.p.m.)

Built-in thermal overload protector with automatic reset

Insulation Class F

Protection IPX8

Material:

Pump casing:AISI Stainless Steel

Motor shaft:AISI Stainless Steel

Diffuser:Plastic (PC)

Double mechanical seals:One: Silicon Carbide / Graphite

Another: Ceramic / Graphite

Pump base:Plastic

Discharge body:Plastic

Application:

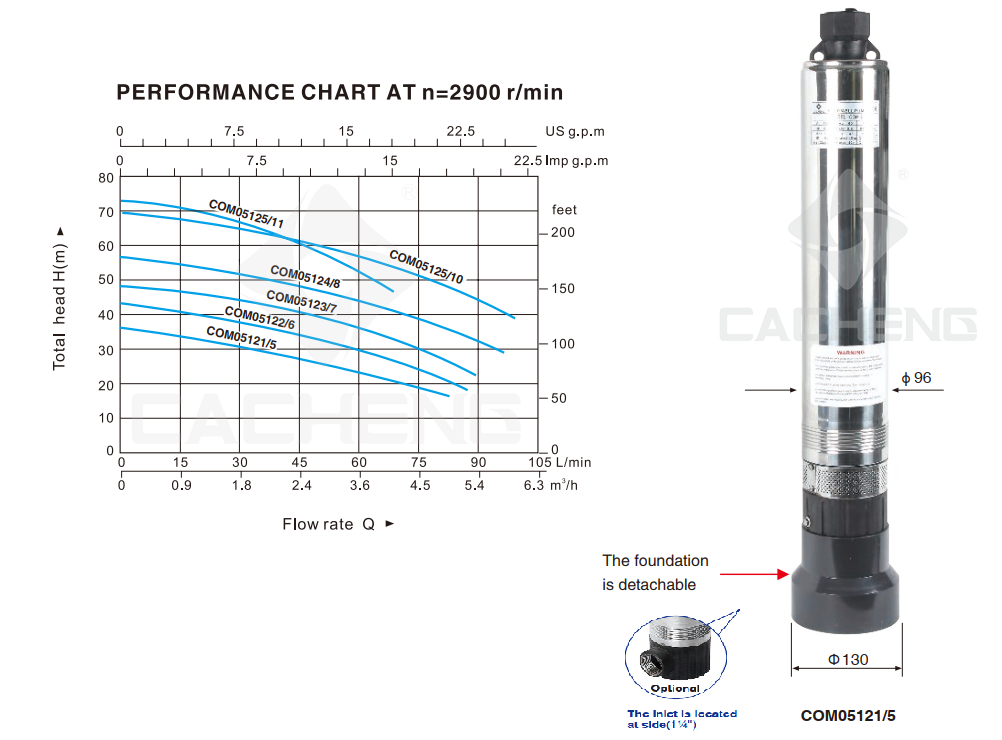

Multistage submersible water pumps for 4" deep wells.

Particularly suitable for civilian and industrial purposes, such as

application to sprinkler and food plants, fire installations, etc.

Water supply from wells or reservoirs, for garden utilization and

irrigation.
