Operating Limits:

Max. fluid temperature from +5℃~50℃

Max. ambient temperature up to 50℃

Max. working pressure: 2.5Bar

Motor:

2-pole induction motor

Built-in thermal protection

Insulation class B

Protection IPX5

Continuous duty

Material:

Pump body and diffuser in glassfiber and

polypropylene mixed

Impeller in glassfiber and nylon mixed

Shaft in stainless steel

Mechanical seal in graphite and ceramic

Motor housing and pump support in aluminium

Application:

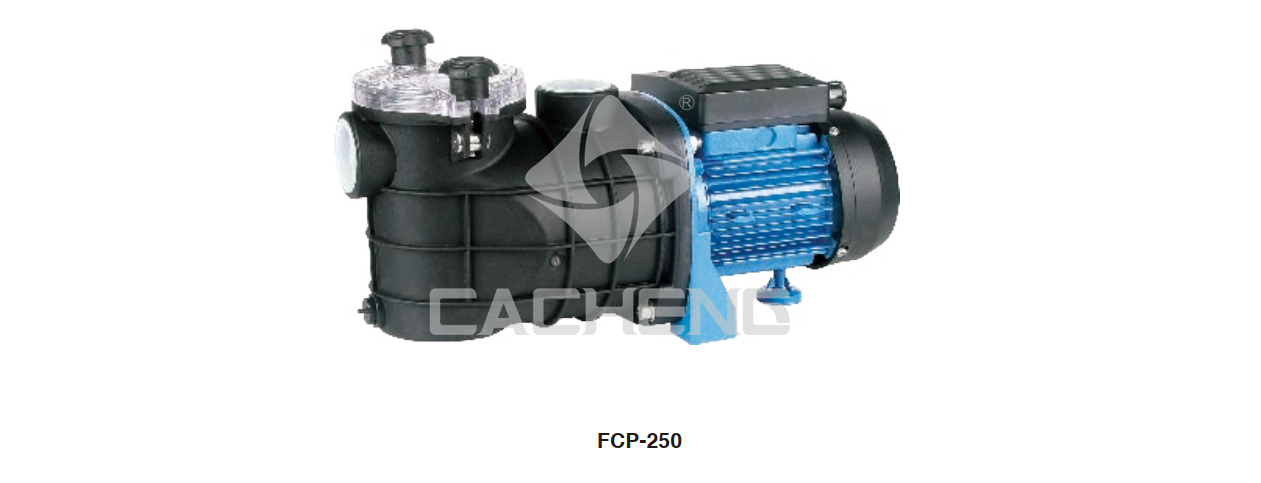

This self-priming electric pump is designed for

clean or slightly dirty water with suspended

solids. It is suitable for swimming pool filtration

system, etc.
