Operating Conditions:

Protection level: IP65

Maximum ambient temperature: 60°C

Functions:

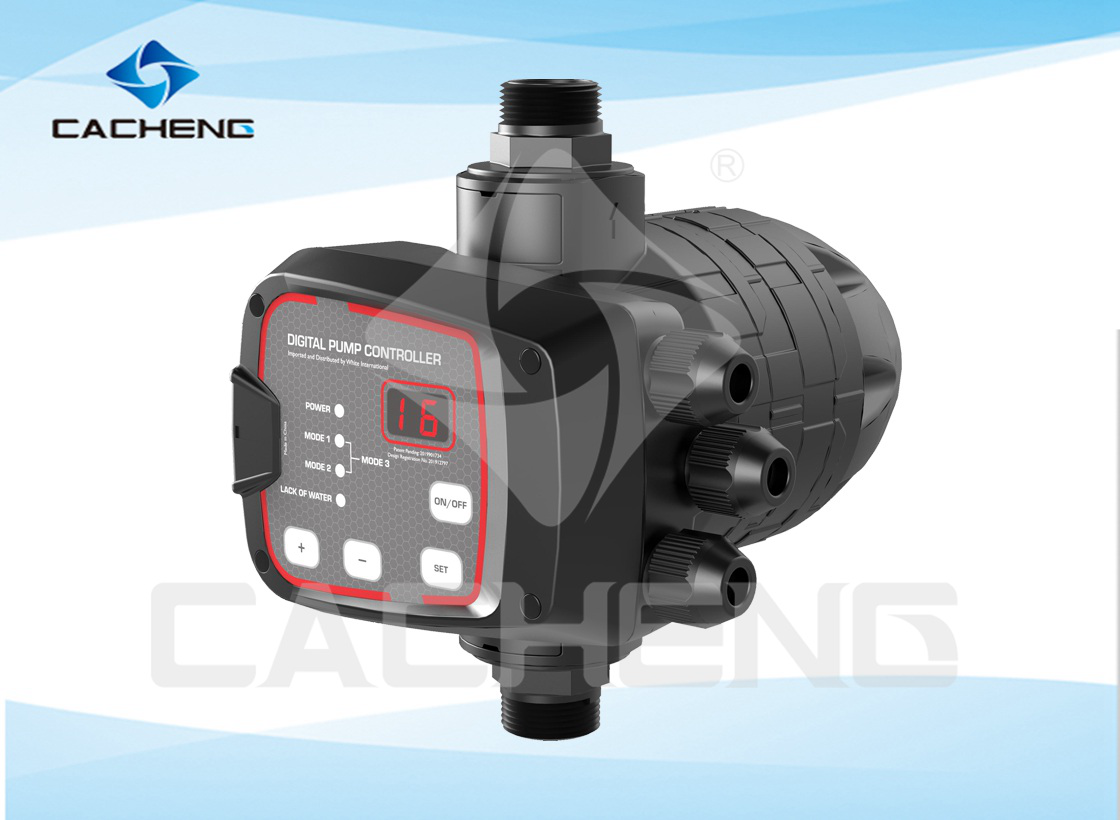

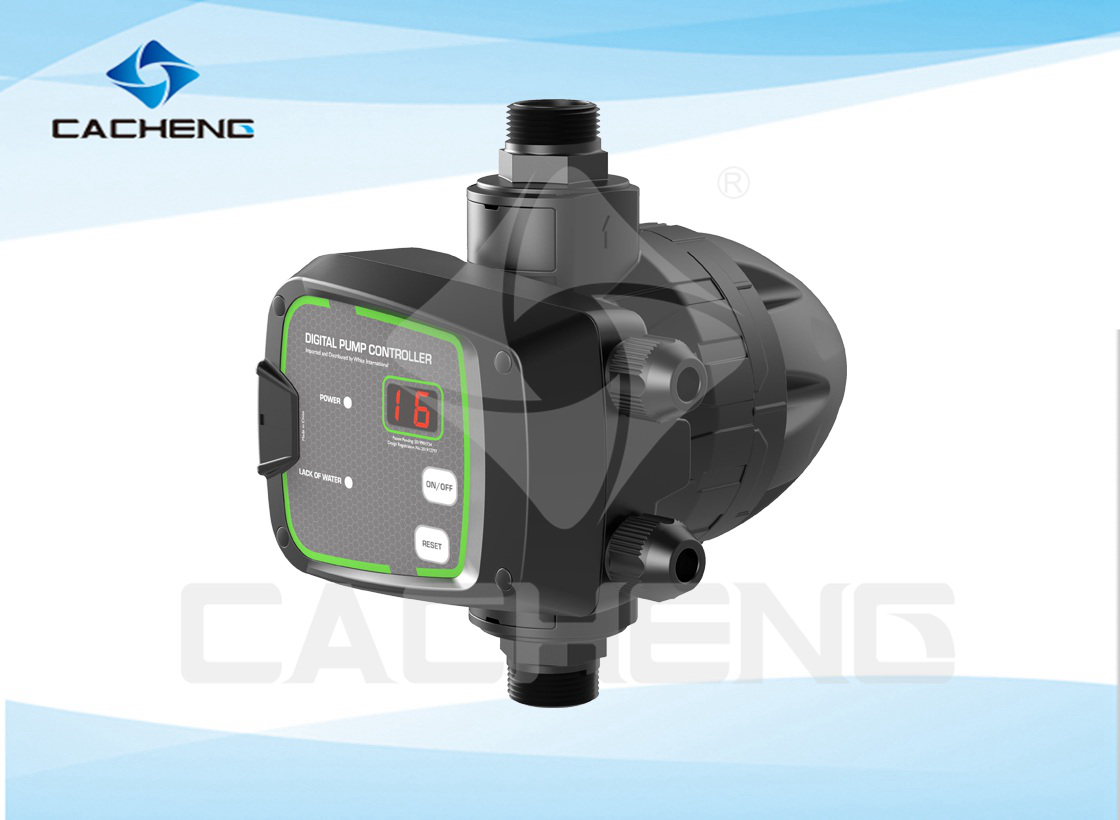

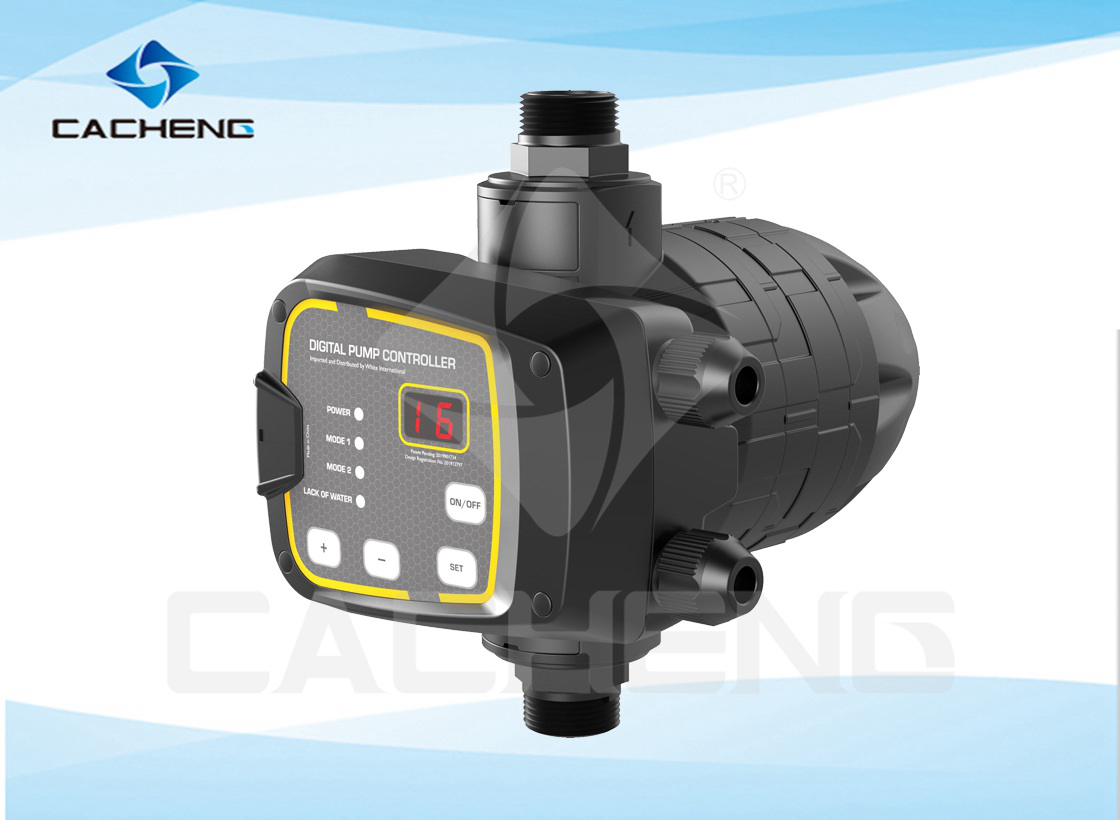

CAIC is an electronic pressure controller with a pressure sensor

that can control the start and stop of a water pump

with a maximum power of 2.2kW.

It is equipped with isolated AC/DC power for enhanced safety

Features:

Rated voltage: AC 110V-240V

Frequency: 50/60Hz

Maximum current: 16A

Inlet thread: G1, R1, NPT1, R1-1/4

Applications:

The product includes overload (OL) and no-load (UL) protection

functions. The overload (OL) current setting range is 15A to 50A,

and the no-load (UL) current setting range is 0.5A to 10A.

The product features overpressure alert (OP), pressure sensor

anomaly alert (PE), and water shortage protection etc.

Water shortage programming: It runs for 20 seconds, stops for 10

seconds, then runs for 40 seconds, stops for 10 seconds, and then

runs for 40 seconds again, after stopping for 24 hours, it restarts.

It has a frequent start (leakage) protection function.

There are two operating modes: Water Flow Mode (F1) and

Pressure Mode (F2)

It can be connected with float switch for parallel control.

Featured with Iot, enabling operation status monitoring and

parameter setting through computer or mobile device.
