CFA pump is energy-optimised and A-labelled.

Level A is the best.

The installation of a CFA pump will reduce the power consumption considerably, reduce noise from

thermostatic valves and similar fittings, and improve the control of the system.

CFA pump offers a host of advantages:

Energy savings automatic control of the differential pressure.

Low-noise operation.

Safety built-in electrical and thermal protection of the pump.

New materials used.

Operating Conditions:

Liquid temperature from 2℃ to +110℃

Ambient temperature up to 40℃

Max. working pressure: 10bar

Construction Material:

Pump body: Cast Iron

Impeller: Plastic

Shaft: Ceramic

Bearings: Ceramic

Bearing plate: Stainless steel

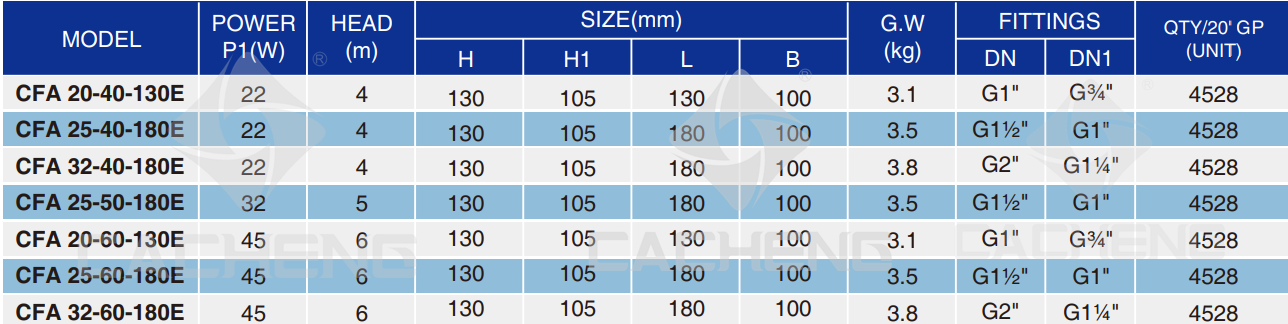

Technical Data:

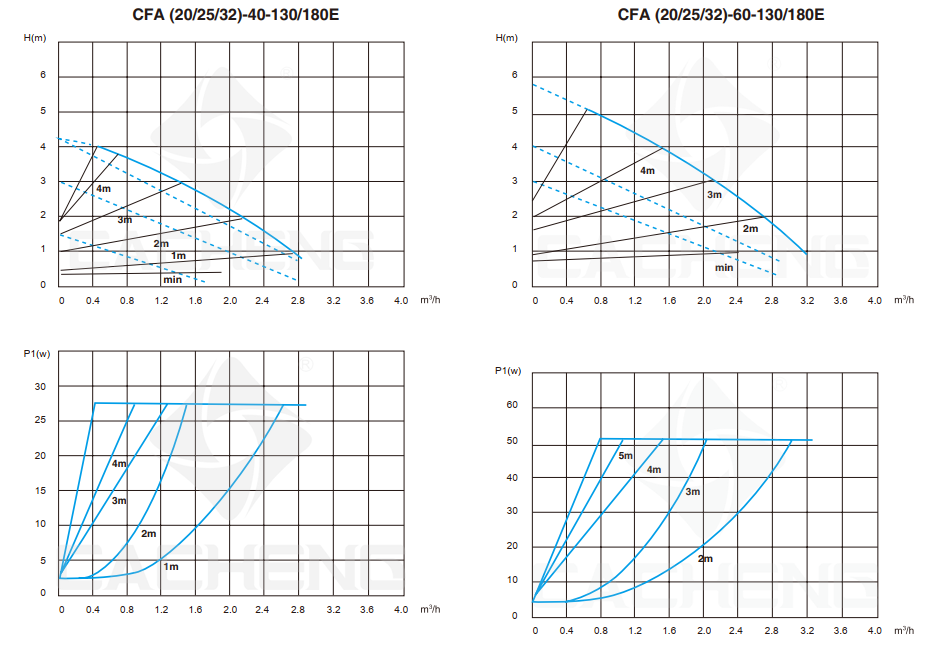

Rate of flow: up to 3.2 m3/h

Pressure head: 4m~6m

Control range: 5~45w

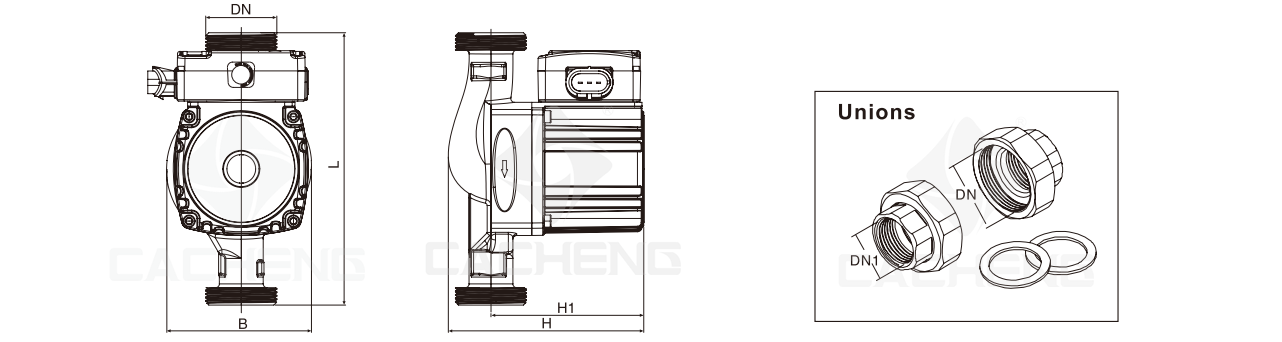

Installation length: 130 and 180mm

Thread connection: 1", 1½" and 2"

Protection class: IP44

Insulation class: F

Product Features:

Compact design

Manual start-up feature

Smooth running

Very low energy consumption

Air-vent screw

Convenient operation

Pre-mounted, screwable angle entry-plug

Automatic adjustment to pressure conditions

Application:

Heating, air-conditoining and industry systems like

Dual pipe system

Underfloor heating

Boiler / primary circuit

Storage charging circuit

Solar systems and heating pumps
