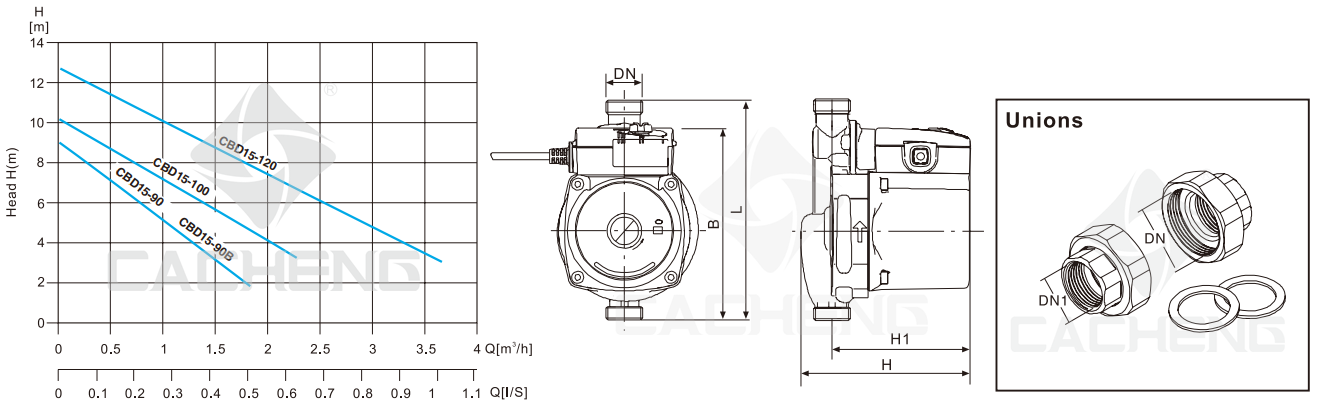

Construction:

Pump casing with suction and delivery connections with the

same diameter and on the same axis(in-line).

With fittings

With Cable 1.3M

Construction Material:

Pump body:Cast iron or Brass

Impeller:PP composite

Shaft:Ceramic

Bearings:Ceramic

Application:

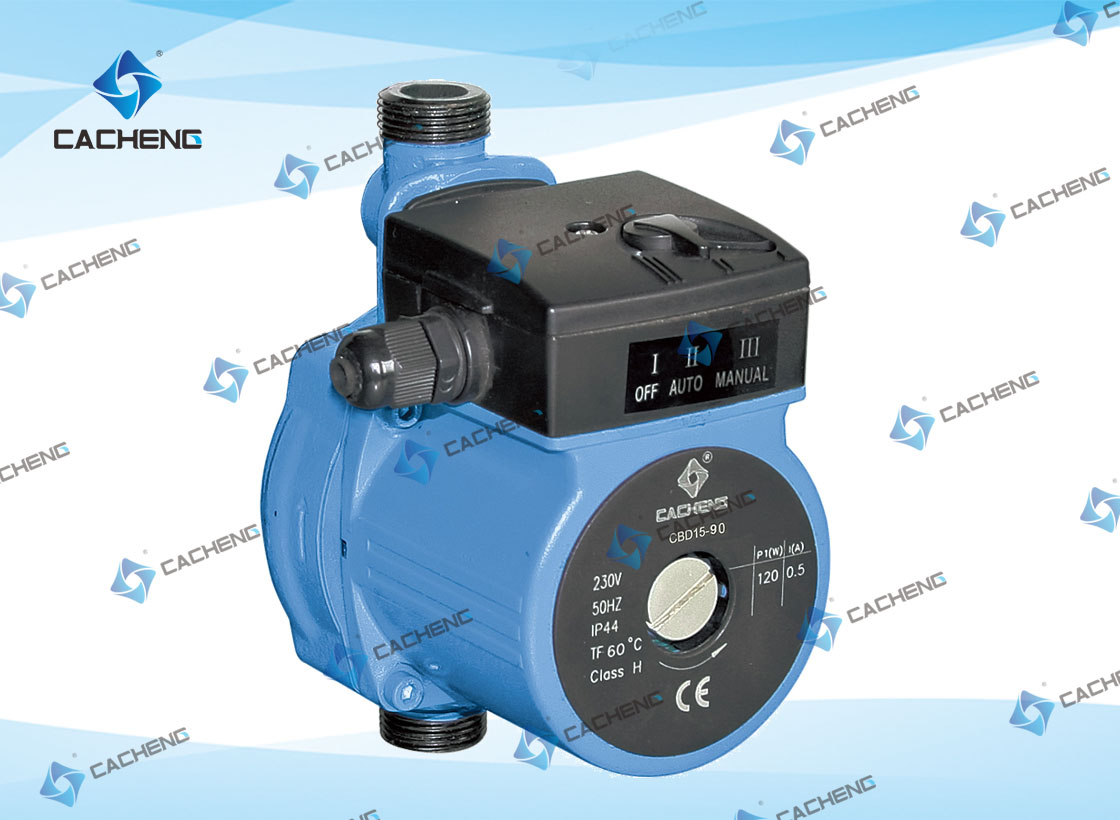

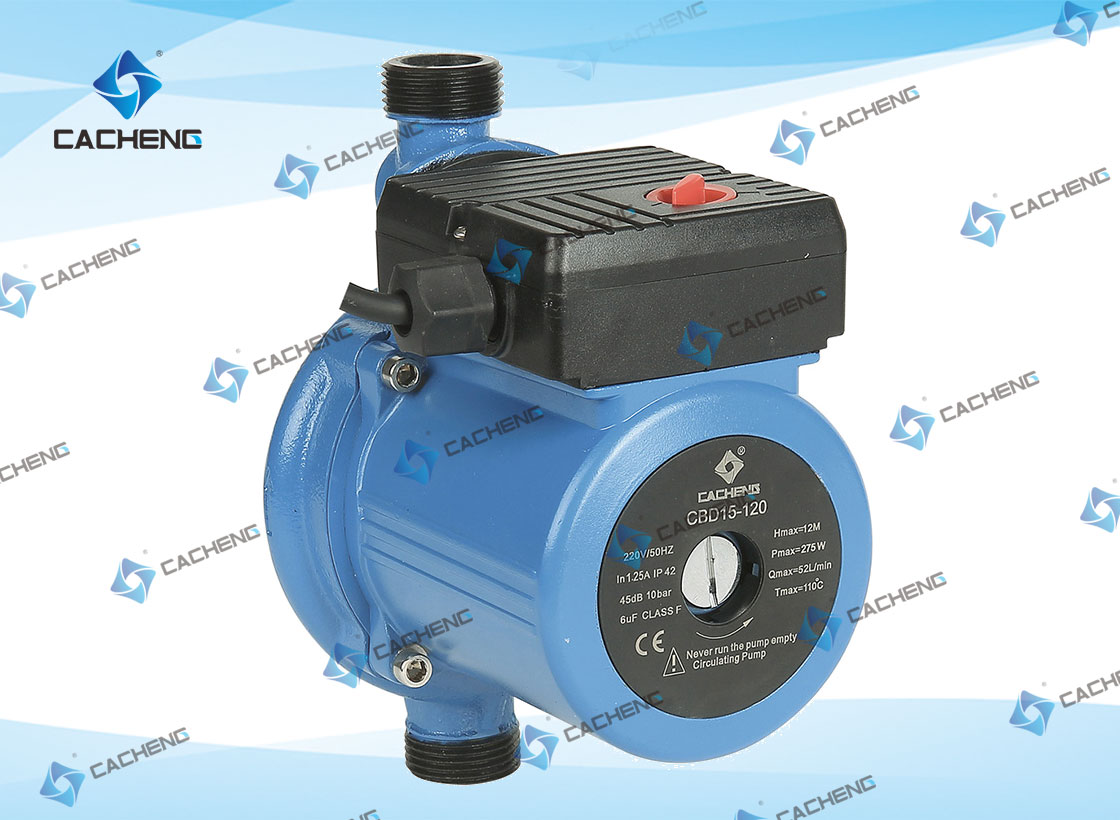

This pump is a circulator pump designed for pressure

boosting of domestic water in domestic properties. The pump

provides additional pressure to showers, taps and similar

outlet points for domestic water.

This pump is used in open systems.

Approval from the local water company must be obtained if

the pump is to be connected directly to the main water.

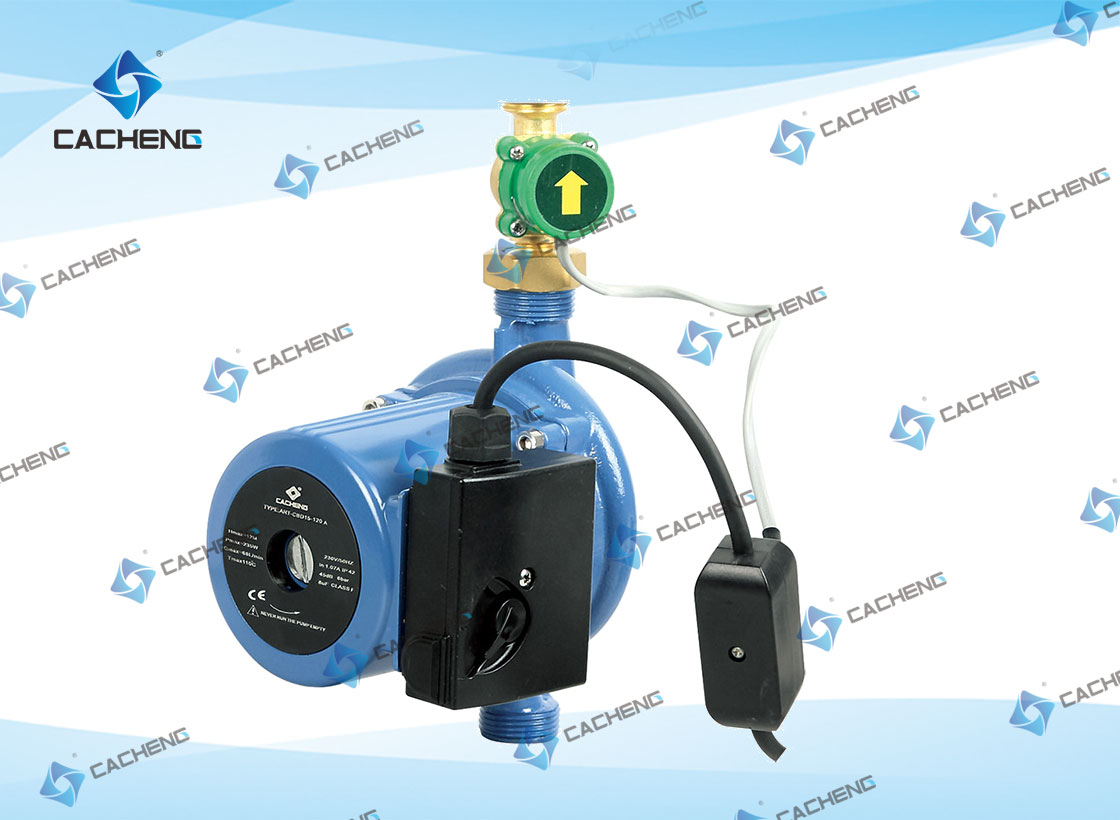

The pump incorporates a flow switch which starts or stops

the pump when a tap is turned on or off.

Operating Conditions:

Liquid temperature from 2℃ to +95℃

Ambient temperature up to 40℃

Max. working pressure: 6bar

The pump runs automatically when water flow is more

than 3.5l/min at AUTO mode

Motor:

2-pole induction motor, single-phase 230V, 50Hz

Insulation class F

Protection IP 42
