Operating Limits:

Liquid temperature:

Normal temperature range +15℃~+70℃

Hot water range + 70℃ ~105℃

Max. ambient temperature: +40℃

Max. operation pressure: 10 bar

Max. inlet pressure is limited by max. operation pressure.

Continuous duty

Motor:

T.E.F.C. continuous

Voltage: 50Hz: 1x220~240V

3x220~240V/380~415V

Insulation class: F

Protection: IP55

Single-phase motor with built-in thermal protector

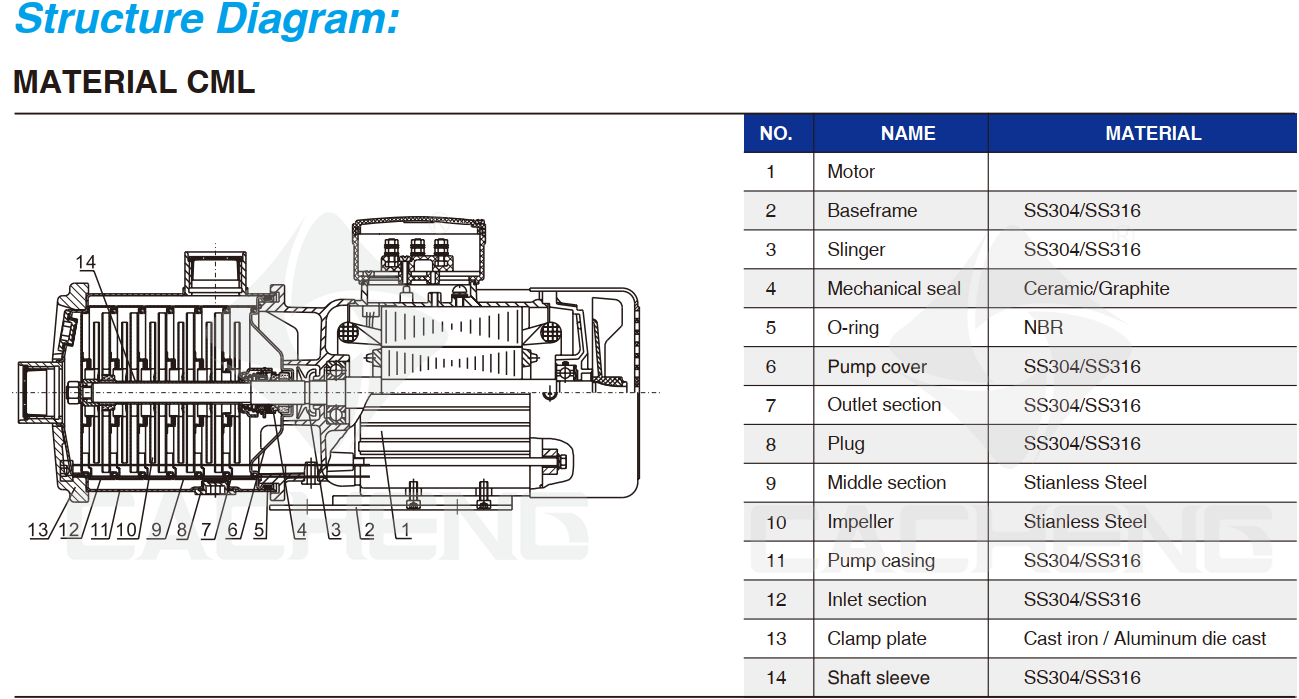

Material:

Thin, clean, non-flammable and non-explosive liquid

containing no solid granules and fibers. Mineral water,

soft water, pure water, edible vegetable oil and other

light chemical mediums. When density or viscosity of

the liquid is higher than that of water.

Whether the pump is suitable to convey the liquid

depends on many factors, among which the most

important ones are chlorine content, PH value,

temperature, solvent and oil content.

Application:

These series are primarily designed for the industrial purpose:

Water treatment processes

Industrial cleaner and dishwasher

Water boosting on process

Heating and cooling for industrial process

Air-conditioning system

Air heating, heating device (soft water)

Water supply and boosting (drinking water, light chlorine water)

Fertilization/metering system

Other specific applications
