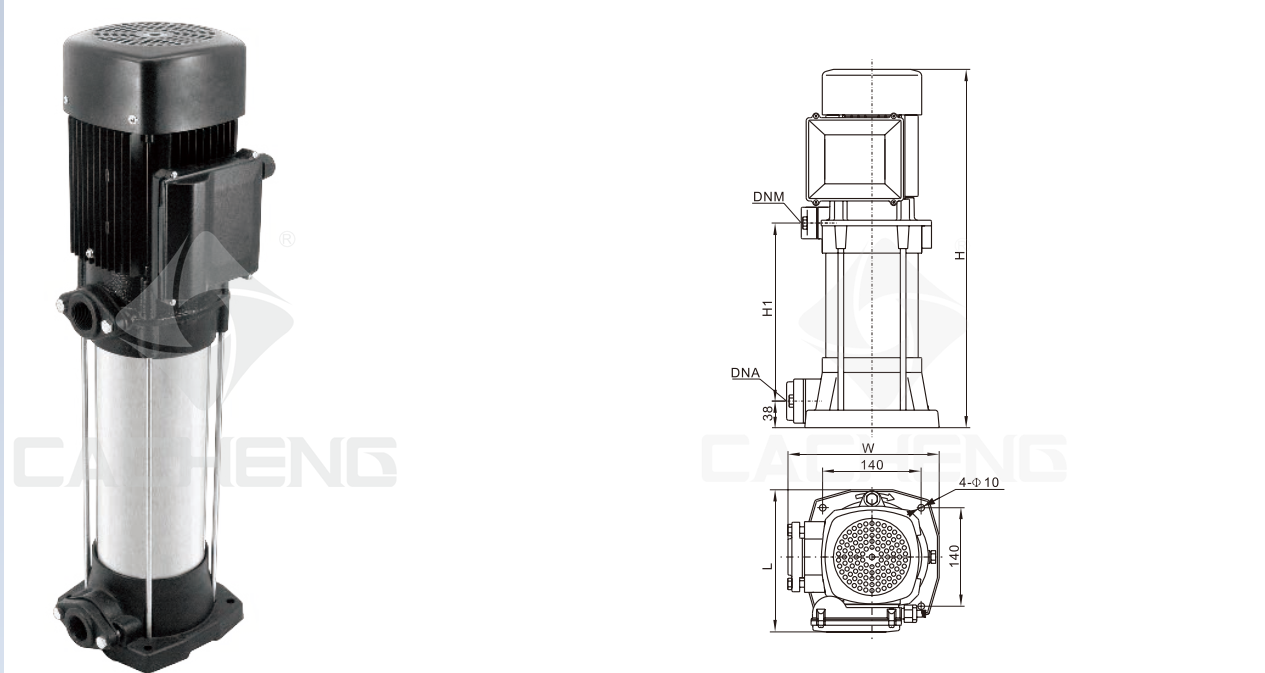

CVM Vertical Multistage Pump

Medium temperature: 0℃ - +50℃
Environmental temperature: ≤+50℃
Max. Working pressure: 1.5MPa
Two-Pole induction motor(n=2900r.p.m.)
Insulation Class F
Protection Class IP54
Single phase version built-in thermal protection
Standard voltage: 1x220-240V
3x220-240V/380-415

coming soon


Operating Limits:

Medium temperature: 0℃ - +50℃

Environmental temperature: ≤+50℃

Max. Working pressure: 1.5MPa


Motor:

Two-Pole induction motor(n=2900r.p.m.)

Insulation Class F

Protection Class IP54

Single phase version built-in thermal protection

Standard voltage: 1x220-240V

3x220-240V/380-415


Applications:

Thin, clean, non-flammable and non-explosive

liquid containing no solid granules and fbres

Garden sprinkler, rain water collection

Pressure boosting of tank

Air-conditioning and cooling system, industrial

washing and other special applications
