Operating Limits:

Normal temperature: +15℃~+70℃

Hot water type: +70℃~104℃

Max. ambient temperature: ≤50℃

Max. operating pressure: 1.0MPa

Materials:

Pump case adopt new manufacture technical as

hydroforming, a volute fluid-flow desigh to achieve

more efficiency.

Low noise standard motor. With high-quality

mechanical seal.

Motor drawn out from pump design is easy for

taking off the impeller without piping removal.

Single phase motor mounted thermal protector

(three-phase motor can be based on customer

requirements to install thermal protector ).

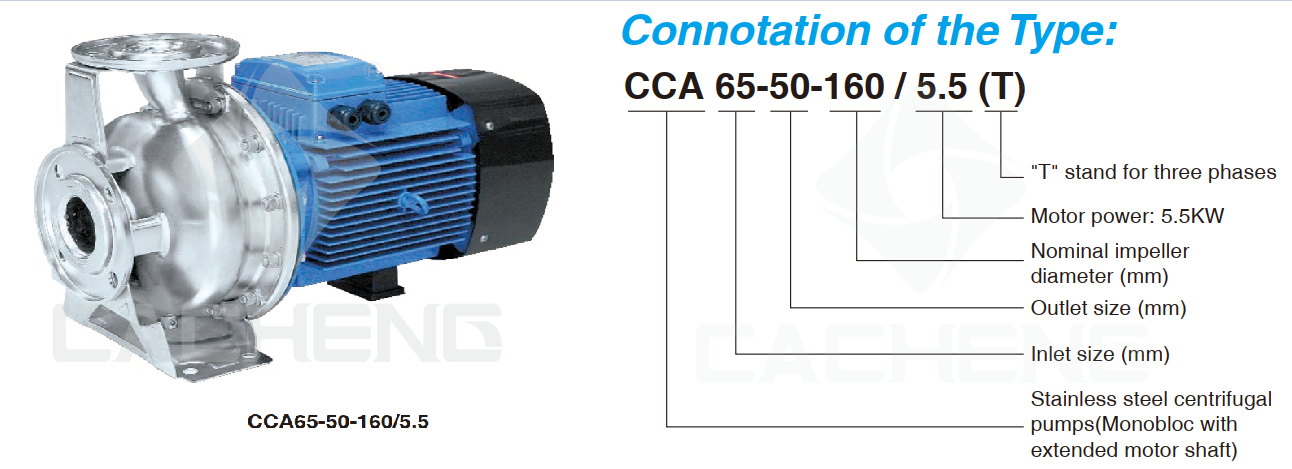

CCA series with a lengthening shaft motor

Standard DIN flange connection

Insulation class: F

Protection IP55

Applications:

Civil, agricultural and Industrial water supplying system.

Making wine and food system

Central heating and airconditioner system

Main pipe pressurizing and cooling tower

Convery weak corrosive liquid

Swimming pool system, drainage system, farmland

irrigation system
