Operating Limits:

Max. Depth: 5m

Max. fluid temperature: 40℃

Max. passage of suspended solid body:Φ 10mm

Continuous duty

Motor:

Two-Pole induction motor (n=2900r/min)

Insulation Class F

Protection IPX8

With capacitor and thermal overload protection

Material:

Pump body / Motor casing: AISI 304 Stainless steel

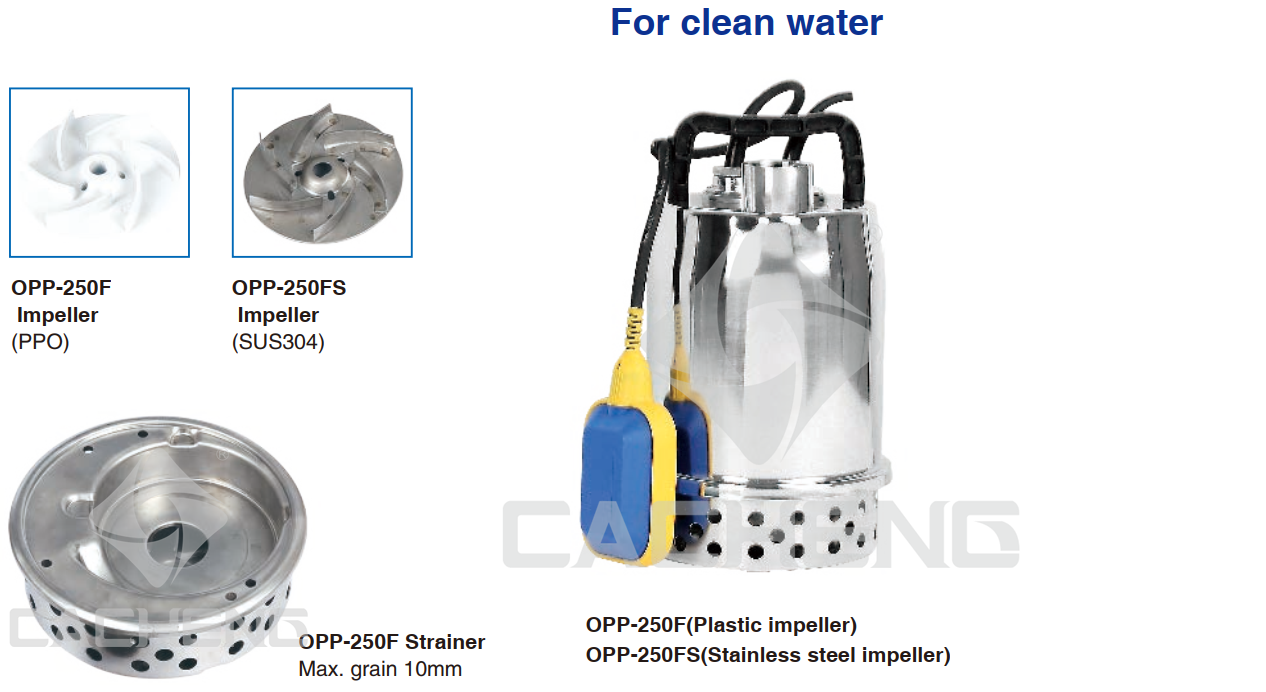

Impeller: Plastic (OPP-250F)/Stainless Steel (OPP-250FS)

Motor shaft: Stainless Steel

Silicon carbide Mechanical seal closed in oil chamber and lip seal

Application:

This pump is used for draining wells, garages, cellars or

places subject to flood, garden irrigation.

Ceramic coated shaft sleeve.
