V Sewage Pump

Max. Depth: 5m
Max. liquid temperature: 40℃
Max. ambient temperature: 40℃
Continuous duty

coming soon


Operating Limits:

Max. Depth: 5m

Max. liquid temperature: 40℃

Max. ambient temperature: 40℃

Continuous duty

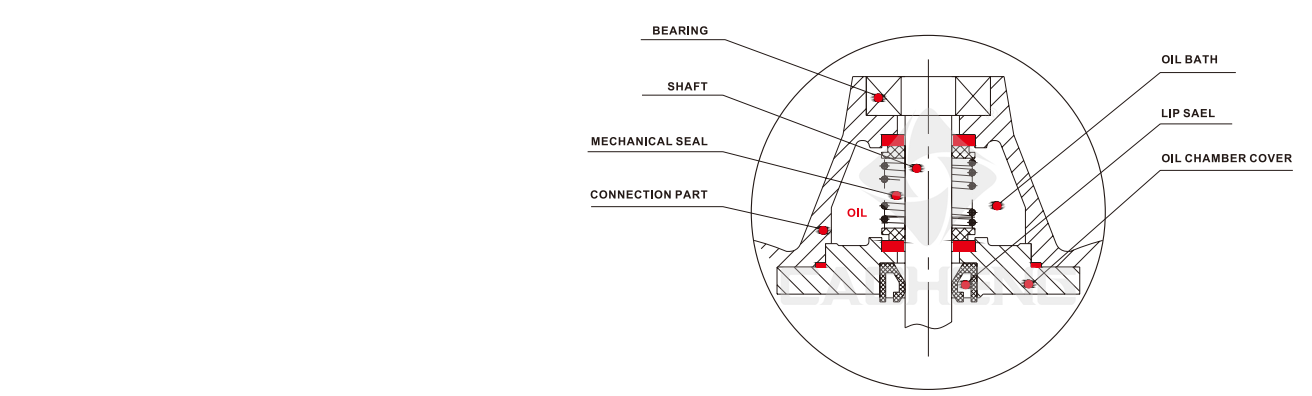

Dual seal and oil bath

"V" series pumps have ultimate motor proctection

with double mechanical seals,an additional lip seal

and oil bath.This enables the seals to work reliably

keeping water out of the motor.


Motor:

Two-pole induction motor (n=2900 r/min)

Insulation class B

Protection IPX8

Single-phase motor with built-in thermal protector


Material:

Pump body:Cast Iron

Impeller:Plastic(V180, V250)

Cast Iron(other models)

Motor shaft:Stainless Steel

Mechanical Seal:Ceramic/Graphite


Application:

Single-phase sewage submersible pump is an advanced and ideal drainage helper.

With the distinct design of wetted parts, itcan work safely and efficiently at

a wide flow range with the feature of total head (non-overload). Impeller,

large channel and anticlogging, which makes the pump efficiently transfer

liquids with solids up to 35 mm and long fibers. Bottom suction structure

makescomplete drainage; stainless steel and special cast iron material make

it anti-corrosive. A float switch automatically turns the pumpon/off according

to the change of the liquid level. A protector in the motor automatically shuts

off the pump in case of overheatingor over-current security and reliability

even in an unfavorable environment.

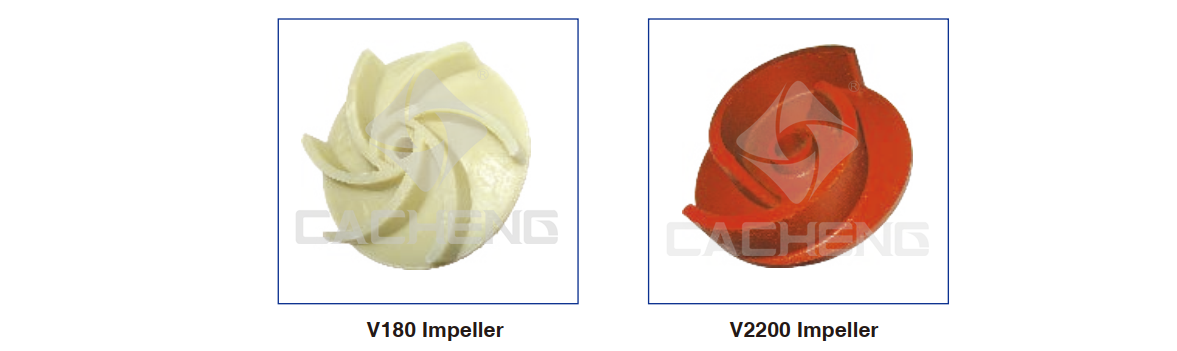

Open Impeller

Good at handling solids as the open design allows a semi cutting

action to clear the pump. Used where there is a possibility that

solids need to be pumped and clog the pump.
